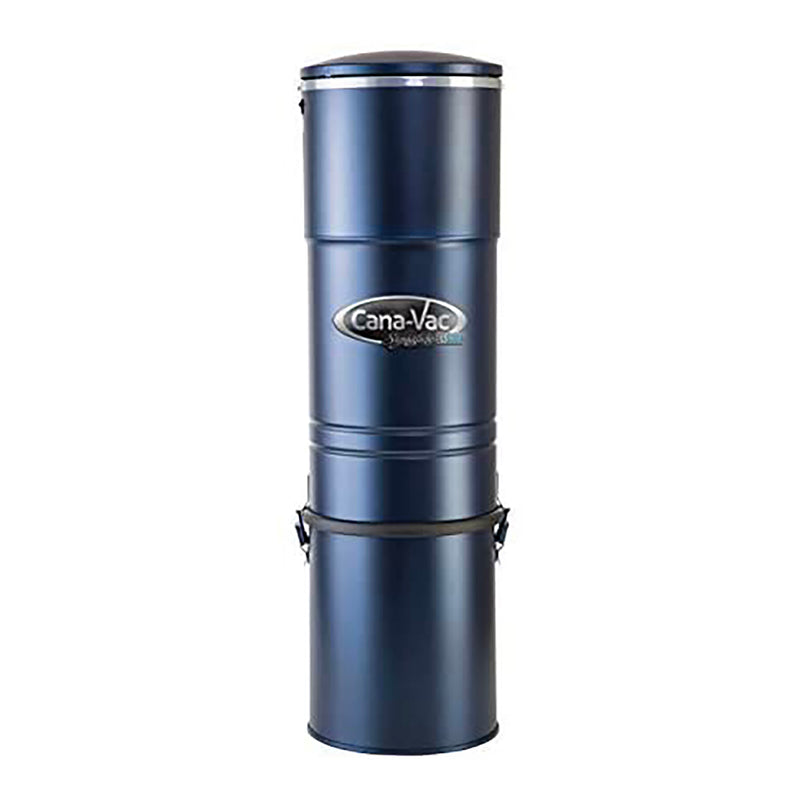

Cana-Vac LS690 Central Vacuum with Deluxe Electric Package
The Signature™ series is designed for mid to large homes where families, pets, and active daily activities will push a central vacuum system day in and day out.
- High Efficiency HEPA Filtration System that captures up to 99.97% of allergens @ .3 mircon.
- Cooling Intake Muffler circulates fresh air during operation, allowing the motor to stay cool for a longer life and quiet operation.
- 3 Pack Allergen Bags included with all Signature™ models.
- Industry Leading 20 Year Warranty for the ultimate in peace of mind.
TANGENTIAL BYPASS MOTOR
It’s what’s inside that counts.
When you select the Signature™ Series of central vacuum systems, you immediately take a step up with the heavy duty performance and longevity of a Tangential Bypass Motor. Unlike Flow-Thru motors which use vacuumed air to cool the motor, Tangential motors have a dedicated “fresh air” cooling fan for optimal cooling. This maximizes its life expectancy and provides Signature™ with a premium source of power.
Deluxe Electric Package
The Deluxe Electric Package is Superb for hardwood floors, area rugs, berber, and plush/ultra plush carpeting. Features a powerhead with adjustable heights. The Deluxe Electric Powerhead uses a high impact, rubber squeegee to reduce debris from kicking back and maximize airflow. Its sleek cogged belt drive eliminates loss of performance through belt stretching and increases vacuum contact with all floor surfaces. Debris is directed to the strongest performance point by a chevron brush roll.
Technical Specifications
| Sq Ft. | 4,000 sq ft |
| Airwatts | 525 |
| Suction | 128" |
| Tangential Motor Size | 5.7" |
| Cooling Intake Muffler | Yes |
| Noise Reduction | Quiet Pack |
| Dirt Capacity | 19L / 6 Gallon |
| Bag or Bagless | Both (Hybrid) |
| Warranty or Registrationj | 20 years |
