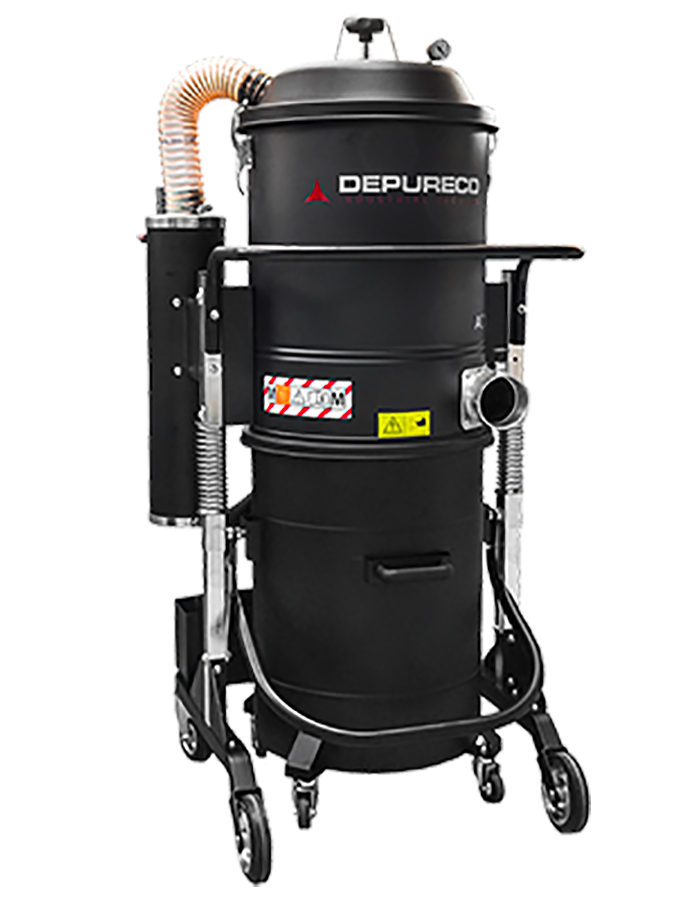

Depureco AC 100 Compressed Air Industrial Vacuum
The AC 100 is the most powerful AIR industrial vacuum in the Depureco range. Thanks to the high-performance Venturi pipe, an impressive vacuum of 500 mBar can be obtained. The AC 100 industrial vacuum works in all conditions: dust, solids, shavings, liquids, and difficult materials using pipes that can be several meters long. This vacuum cleaner is fitted as standard with a 24,000 cm2 polyester pocket filter certified as M Class by BIA (Berufsgenossenschaftliches Institut für Arbeitssicherheit) with a 1µ filtration efficiency. The filter can be customized to a specific application.
In this vacuum model anti-static filters are available to prevent electrostatic charges, in NOMEX to withstand high temperatures (up to 250°C), Teflon coated to work with wet materials, and with PTFE nanotechnology treatment to work with the most difficult dust. The AC 100 vacuum is equipped with a manual filter cleaning system. The filter can be shaken easily and effectively with the lever on the side of the vacuum. A handy detachable container on wheels allows the operator to collect the vacuumed material and conveniently dispose of it. The container can have a capacity of either 65 lt or 100 lt; in both cases, it has reinforced outer support for the 4 castor wheels so that it can be handled safely even when it contains several kg of material. Tiltable kit for containers available on demand.
Surface: 24.000 cm2
Capacity: 100 L
ENGINE / MOTOR:
|Suction type||Venturi Pipe|
|Maximum Vacuum||500 mBar|
|Maximum Air Flow||480 m3/h|
|Noise level – (EN ISO 3744)||70 dB(A)|
|Pressure Required||6 – 8|
|Class EN 60335-2-69||M Class|
|Filter Cleaning||Manual Shaker|
|Inlet||80 Ø mm|
|Dimensions||660 x 800 mm|
