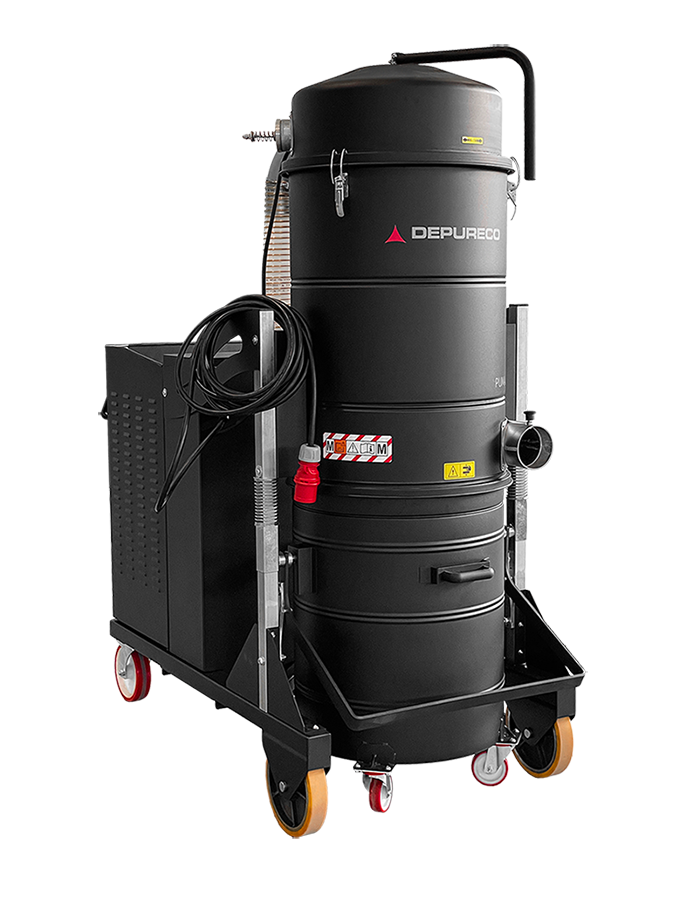

Depureco Puma 10 Heavy Three-Phase Industrial Vacuum Cleaner
The Puma 10 is the smallest industrial vacuum in Depureco’s most powerful range. It has a high-performance single-stage side channel blower with a vacuum breaker safety valve installed as standard. The tangential intake with the sturdy cyclone welded inside the filter chamber guarantee excellent efficiency even with the finest dust. The material, entering tangentially, meets the cyclone and due to the friction generated, loses speed and falls directly into the container. This system is extremely useful to protect the filter from the vacuumed material. The filter is in M Class high grammage polyester (certified by BIA Berufsgenossenschaftliches Institut für Arbeitssicherheit) with a 1µ filtration efficiency. The filter can be customized to a specific application. For this vacuum cleaner, anti-static filters are available to prevent electrostatic charges, in NOMEX to withstand high temperatures (up to 250°C), Teflon coated to work with wet materials, and with PTFE nanotechnology treatment to work with the most difficult dust.
The PUMA 10 industrial vacuum is equipped with a manual filter cleaning system. The filter can be shaken easily and effectively with the lever on the top of the vacuum. The vacuum can be configured with an automatic filter cleaning system on demand. Namely, there is a choice between jet pulse cleaning, electro-pneumatic piston filter shaker, or electrical filter shaker. Depureco’s PUMA 10 model is equipped with a handy and sturdy 175 L container capacity, fitted with a release system, which allows the operator to collect the vacuumed material and conveniently dispose of it. To facilitate handling the container, there are 4 castor wheels mounted on reinforced supports so that it can be handled easily even when it contains several kg of material. A kit is available on-demand for handling and unloading the container with a forklift.
Capacity: 175 L
ENGINE / MOTOR:
|Suction type||Side Channel Blower|
|Maximum vacuum||360 mBar|
|Vacuum in continuous run||260 mBar|
|Maximum air flow||730 m3/h|
|Noise level – (EN ISO 3744)||74 dB(A)|
|Class EN 60335-2-69||M Class|
|Filter cleaning||Manual Shaker|
|Inlet||100 Ø mm|
|Dimensions||850 x 1550 mm|
