Replace a Vacuum Cleaner Belt in Under 10 Minutes.

How to Replace a Vacuum Cleaner Belt in Under 10 Minutes?

A tired, stretched, or snapped vacuum belt is one of the quickest fixes you can make—and it’s often the reason a vacuum loses suction at the floor or the brushroll stops spinning. With a new belt and a screwdriver, you can restore cleaning power in about 10 minutes.

What you’ll need

• New belt that matches your model (check the manual or the model sticker)
• Phillips or flat screwdriver
• Scissors or a utility knife (to cut out tangled hair)
• Dry cloth or paper towels

Optional: Gloves and a phone camera to remember part placement

Time: 10 minutes. Difficulty: Easy.

Safety first: Unplug the vacuum before you begin.

Step-by-step: Belt replacement made simple

1. Unplug and prep the vacuum
Lay it on its back. If your vacuum has a hose or canister, remove it for easier access.

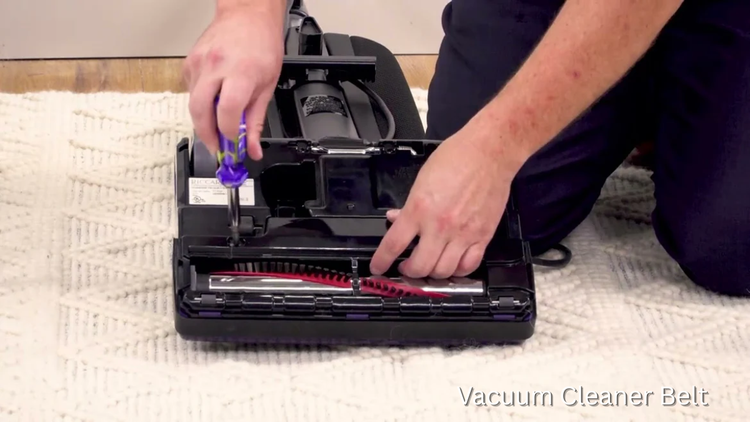

2. Remove the bottom plate.

Flip the vacuum and take off the soleplate or brush guard (usually 2–6 screws or clips). Keep the fasteners in a small cup.

3. Lift out the brushroll

Slide the brushroll up and out. Note which end is left/right—take a quick photo if needed.

4. Take off the old belt.

Slip the belt off the brushroll and motor shaft. If it’s snapped, remove any fragments.

5. Clean as you go.

Cut hair and threads from the brushroll. Wipe the cavity clean. Spin the brushroll end caps with your fingers; if they feel gritty, clean or replace them.

6. Fit the new belt on the motor shaft

Thread the belt onto the small metal motor pulley. This can be snug—align it straight so it won’t walk off.

7. Reinstall the brushroll with tension

Slide the belt over the brushroll’s belt groove, then pull the brushroll into its mounts. The belt should be tight enough to rotate the brushroll into place with a little effort.

8. Reattach the bottom plate.

Align and snap/bolt it back on, and check for pinched wires or misaligned tabs.

9. Test spin and power

Spin the brushroll by hand—it should turn smoothly with some resistance. Plug in and run the vacuum for 10–15 seconds. Listen for an even sound and watch the brushroll engage.

How to pick the right belt

- Match model number: Look at the label on the underside or inside the dust bin/door.

- Belt types: flat (most common), cogged/geared (teeth), and round. Use the exact type your model specifies.

- Replace regularly: Every 6–12 months for flat belts, or sooner if you notice slipping, glazing, or a burning rubber smell.

Quick troubleshooting

- Brush still won’t spin: Check for hidden clogs at the intake, seized end caps, or a jammed height adjustment.

- Burning smell or smoke: Power off immediately. The belt may be misrouted, rubbing the housing, or the brushroll may be locked by debris.

- Belt keeps popping off: The motor pulley or brushroll groove may be misaligned or overly worn.

Pro tips for a faster swap

- Warm the belt in your hands for 20–30 seconds—it slips on easier.

- Use a zip tie or small hook to pull the belt over the brushroll if it’s tight.

- Keep a spare belt on hand; replacing a stretched belt early protects the motor and improves pickup.

Accessories Spotlight: Get More From Your Vacuum

Vacuum Wands

Vacuum wands extend your reach without moving heavy furniture or grabbing a step stool. They’re perfect for ceiling cobwebs, crown molding, and under-bed spaces. Look for lightweight metal or carbon-fiber wands with locking buttons so tools don’t fall off mid-clean. Adjustable, telescoping designs let you dial in the exact length for better control and posture.

Vacuum Crevice Tool

The crevice tool is the slim, tapered nozzle that reaches into tight seams: sofa edges, car seats, baseboard gaps, and refrigerator rails. Its narrow opening focuses airflow for strong spot suction, making it ideal for precision cleaning where standard heads can’t fit. Pair it with a wand for corners and window tracks.

Crevice Tools

Beyond the standard nozzle, specialty crevice tools include flexible, extra-long, and brush-tipped versions. Flexible models bend around obstacles; extra-long tools dive deep between appliances; brush-tipped crevice attachments loosen dust from vents, keyboards, and molding without scratching. Keep a set to handle different surfaces and tight spaces throughout the home and car.

Centec Vacuum Hose

Centec (Cen-Tec Systems) hoses are known for being lightweight, crush-resistant, and smooth on the inside to maintain strong airflow. Many feature universal cuffs that adapt to popular brands, making them a smart upgrade for central vacuums, shop vacs, and canister systems. A quality hose improves maneuverability and helps your tools maintain stable suction while you clean.

Carpet Brush

A carpet brush—whether an air-driven turbo head or a powered brushroll—agitates carpet fibers to lift embedded dirt, pet hair, and grit. If your vacuum struggles on rugs, upgrading to a dedicated carpet brush can transform performance. Choose a model with adjustable height, edge grooming, and easy-to-clean bearings to keep it spinning freely.

Crevice Cleaning Brush

This hybrid attachment combines a narrow nozzle with soft bristles at the tip, so you can brush and vacuum simultaneously. It’s excellent for window sills, baseboard seams, vent grilles, sliding door tracks, and the tiny channels where crumbs settle. The bristles dislodge debris while suction removes it, saving you from chasing dust with a separate brush.

Central Vacuum Power Heads

Central Vacuum Power Heads are the heart of your central vacuum system, delivering deep, thorough cleaning across carpets and hard floors alike. Designed for power, durability, and ease of use, these attachments use motorized brushes to lift embedded dirt, pet hair, and debris that standard suction alone can’t reach. Whether you prefer electric or air-driven models, today’s power heads come with advanced features like height adjustment, swivel necks, and quiet operation—making them ideal for any home environment. Upgrading to a high-quality central vacuum powerheadnot only enhances cleaning performance but also extends the life of your flooring, ensuring a spotless, healthier living space every time you vacuum.

By swapping a worn belt and using the right attachments, you’ll get back the deep-cleaning performance you expect—without a service appointment. If you want, tell me your vacuum’s brand and model, and I’ll point you to the exact belt type and a compatible tool setup.
