Central Vacuum System Installation for Canadian Homeowners

Central Vacuum System Installation Guide for Canadian Homeowners

If you've been lugging a heavy portable vacuum from room to room, dreading laundry day because of all the dust it stirs up, or watching your portable unit blow allergens right back into the air, it may be time to consider a permanent upgrade. A central vacuum system installation could be one of the smartest home improvements you make this year — and once you understand how it works, you'll wonder why you waited so long.

This guide walks you through everything you need to know: how central vacuums work, what the installation process looks like, what components you'll need, and how to choose the right system for your home—so you can buy with confidence.

What Is a Central Vacuum System?

A central vacuum system is a built-in home appliance that permanently replaces your portable vacuum. The power unit is installed in a remote area of your home — typically the garage, basement, or utility room — and connected via a network of PVC pipes running through your walls to inlet valves in each room.

When you want to clean, you simply plug a lightweight hose into the nearest wall inlet and get to work. Dirt, dust, and debris travel through the in-wall pipes to the power unit, where they are collected and sealed away — completely out of your living space.

The result? Powerful suction, virtually silent operation in the rooms you're cleaning, and dramatically improved indoor air quality.

Why Central Vacuum System Installation Is Worth It

Before diving into the how, it's worth understanding the why — because the benefits of a central vacuum go well beyond simple convenience.

Better Indoor Air Quality Traditional portable vacuums recirculate air through the motor and filter. Even with HEPA filters, microscopic dust particles, pet dander, and allergens often make it back into the room. With a central system, all exhaust air exits through the power unit, which is typically vented to the outside. Your living areas stay cleaner and healthier — especially important for households with asthma or allergy sufferers.

More Power, Less Effort Central vacuum power units deliver significantly more suction than most portable machines. Brands like Cana-Vac and Nilfisk — both carried at The Vacuum Store — offer units rated up to 7,000 square feet of coverage with airwatt ratings that outperform most portable vacuums on the market. You get deep cleaning without fighting the machine.

A Quieter Home Because the motor is installed away from your living space, there's minimal noise where you're actually cleaning. This means you can vacuum while a baby sleeps, a partner works from home, or while watching TV without disruption.

It Adds Value to Your Home A central vacuum system is considered a permanent home improvement, much like a built-in appliance. Real estate agents note that homes with central vacuum systems are often seen as more desirable to buyers — it's a feature that pays for itself over time.

Long-Term Savings A quality central vacuum power unit lasts 20 to 30 years with proper maintenance. Compare that to replacing a portable vacuum every 5–8 years, and the math makes a compelling case.

Understanding the Components Before You Buy

A successful central vacuum system installation starts with knowing your parts.

Here's what makes up a complete system:

The Power Unit This is the heart of your system. It houses the motor, collection canister or bag, and filtration. Power units are rated by airwatts, motor type, and the square footage they can support. For example, the Cana-Vac ACAN50A is well-suited for homes up to 3,000 sq ft, while the ACAN70A handles up to 7,000 sq ft.

When choosing a power unit, consider:

• The total square footage of your home (including above and below grade)
• Whether you have mostly hard floors or carpeted areas
• Whether anyone in the household has allergies (filtered vs. cyclonic units)
• Bag vs. bagless collection preference

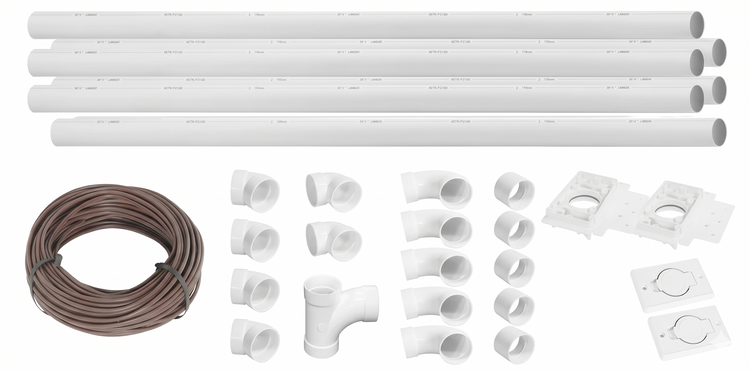

In-Wall Piping Smooth-walled PVC pipe (typically 2 inches in diameter) carries debris from the inlets to the power unit. Key piping components include straight sections, 45° and 90° elbows, tee connectors, and pipe straps that secure tubing to wall studs.

Wall Inlet Valves These are the ports where you plug in your cleaning hose. They're typically installed at knee height throughout the home — ideally spaced so that a 30-foot hose can reach every corner of each room from the nearest inlet.

The Hose and Cleaning Attachments The hose connects your inlet valve to your powerhead or cleaning tool. You can choose from standard air-driven hoses or electric hoses (which carry current to power motorized brushroll heads). Accessories include telescoping wands, crevice tools, dusting brushes, upholstery tools, and motorized powerheads for carpet cleaning.

Planning Your Central Vacuum System Installation

Good planning is everything. A poorly planned installation results in long pipe runs, excessive bends, and reduced suction.

Here's how to approach it.

Map Your Home's Layout Start with a floor plan. Identify where you want wall inlets — generally one per 500–700 sq ft is a good rule of thumb, though the exact count depends on room layout. Hallways and central walls are ideal locations because they minimize pipe runs.

Locate the Power Unit The power unit should go somewhere unobtrusive but accessible: a garage, basement, utility room, or laundry room works well. The unit needs to be within reach of an electrical outlet (dedicated 20-amp circuit recommended) and should either exhaust to outside air or have a high-quality filter if indoor exhaust is required.

Plan Your Pipe Route The goal is a continuous, low-resistance path from each inlet valve back to the power unit. Every unnecessary elbow or long horizontal run reduces suction. Pipe runs through interior walls are easiest in new construction; in existing homes, you'll route through closets, drop ceilings, crawl spaces, or along the back of cabinets.

For most two-story homes, a trunk line runs vertically through an interior wall or closet, with branch lines extending to each floor's inlet locations.

Choose New Construction vs. Retrofit Installing a central vacuum system during a new build or major renovation is the easiest and most cost-effective path—pipes go in before the drywall. That said, retrofitting an existing home is very common and completely doable. Many homeowners with basic DIY skills complete a retrofit themselves in a weekend; others hire a local installer.

The Installation Process: Step by Step

Here is a general overview of what central vacuum system installation involves:

Step 1 — Mark Inlet Locations Using your floor plan, mark where each wall inlet will go. Inlets are typically placed in hallways, living areas, kitchens, and bedrooms at a convenient height — around 12 to 18 inches from the floor.

Step 2 — Run the In-Wall Piping Starting from the power unit location, run 2-inch PVC pipe through walls, floors, and ceilings to each inlet location. Use pipe straps every 4 feet to secure the tubing. Use 45° elbows where possible instead of 90° turns—the gentler angle reduces suction loss.

Step 3 — Install Inlet Valves Once piping is in place, install the wall inlet valves. These mount in standard electrical box cutouts and connect to the piping via a fitting on the back. A low-voltage wire runs alongside the pipe to signal the power unit to start when a hose is plugged in.

Step 4 — Install the Power Unit Mount the power unit on the wall of your chosen utility space, connect all incoming pipe runs to the intake port, connect the low-voltage wiring, plug into the electrical outlet, and connect exhaust tubing to an outside vent if required.

Step 5 — Test the System Plug a hose into each inlet and verify suction. Check all joints for leaks (you can feel air escaping around unsealed joints). Most systems include a 30-day shakedown period where minor adjustments may be needed.

What to Look for When Buying a Central Vacuum System in Canada

Shopping for a central vacuum system in Canada comes with a few extra considerations.

Buy Canadian-Compatible Products Canadian homes use 120V power, and most Canadian-sold systems are already wired accordingly. Brands like Cana-Vac are proudly Canadian-made and designed specifically for Canadian home construction styles, making them a natural fit for Canadian buyers.

Consider a Complete Package vs. Component-by-component. For most buyers, a central vacuum package—which bundles a power unit, hose, and accessory kit together—offers better value than sourcing components separately. The Vacuum Store carries a curated selection of central vacuum packages from top brands, making it easy to get everything you need in a single order.

Match the System to Your Floors If you have primarily hardwood and hard floors, an air-driven hose with a good floor brush may be all you need. Homes with significant carpeted areas benefit from an electric hose and motorized powerhead like the SEBO ET-1 or a Wessel Werk electric head — both of which deliver deep carpet cleaning with every pass.

Don't Overlook Filtration If indoor air quality is a priority, look for a power unit with a HEPA-rated filtration system. Cana-Vac's HEPA bags, for example, are five-ply cloth and filter particulates at the unit level, so nothing re-enters the home.

Free shipping makes a big difference. Piping, fittings, and accessories add up quickly. The Vacuum Store offers free shipping on orders over $99 across Canada — which is a meaningful saving when you're purchasing a complete system with installation supplies.

How Much Does Central Vacuum System Installation Cost?

The cost depends on three things: the power unit you choose, the size of your home (which affects piping and inlets needed), and whether you install it yourself or hire a professional.

As a rough guide:

• Entry-level system (up to 3,000 sq ft): Power unit, basic hose kit, and installation supplies for a smaller home can start under $1,000 if you install it yourself.
• Mid-range system (3,000–5,000 sq ft): Expect $1,200–$2,000 for a quality power unit with an electric hose and powerhead.
• Premium system (5,000–7,000+ sq ft): High-performance units with full accessory packages range from $2,000 to $3,500 and up.
• Professional installation labor: Varies widely by region; typically $300–$800 depending on home size and complexity.

Many homeowners find that central vacuum system installation is a one-time cost that pays off within a few years compared to replacing portable vacuums and reducing allergy-related health expenses.

DIY Installation vs. Hiring a Professional

One of the best things about central vacuum installation is that it's genuinely DIY-friendly for handy homeowners. If you're comfortable running cable through walls, using a drill, and following a floor plan, you can likely tackle the installation yourself—especially in a newer home with accessible interior walls.

That said, professional installation makes sense when

• Your home has complex multi-level routing
• You're working in a fully finished home with limited wall access
• You simply prefer the peace of mind of a professional job

Either way, The Vacuum Store's knowledgeable team can help you plan your installation, identify the right components, and ensure you have everything you need before you begin. Their customer reviews consistently highlight how helpful and product-knowledgeable the staff are — a genuine advantage when you're investing in a whole-home system.

Maintaining Your Central Vacuum System

One of the reasons central vacuums last so long is how little maintenance they require.

• Empty the canister or replace the bag when it reaches two-thirds full — a full canister reduces suction noticeably.
• Inspect and clean filters every six months to one year, depending on usage.
• Check inlets and hose connections for blockages if suction drops unexpectedly.
• Wipe down the power unit exterior and inspect for any exhaust leaks annually.

With basic care, your central vacuum system can last 20 to 30 years—making it one of the best-value home investments available.

Ready to Get Started?

A central vacuum system installation is a home upgrade that genuinely improves daily life — cleaner air, less noise, less effort, and a cleaner home overall. Whether you're building new, renovating, or simply ready to retire your old portable vacuum for good, there's never been a better time to make the switch.

The Vacuum Store carries Canada's top central vacuum brands, including Cana-Vac, Nilfisk, DuoVac, DrainVac, and Cyclovac, along with every hose, fitting, inlet, powerhead, and accessory you need to complete your installation—all with free shipping on orders over $99.

Browse complete central vacuum systems and installation supplies at www.thevacuumstore.ca — or reach out to their team directly if you need help planning your system. They know their products inside and out, and they're ready to help you find exactly the right fit for your home.
