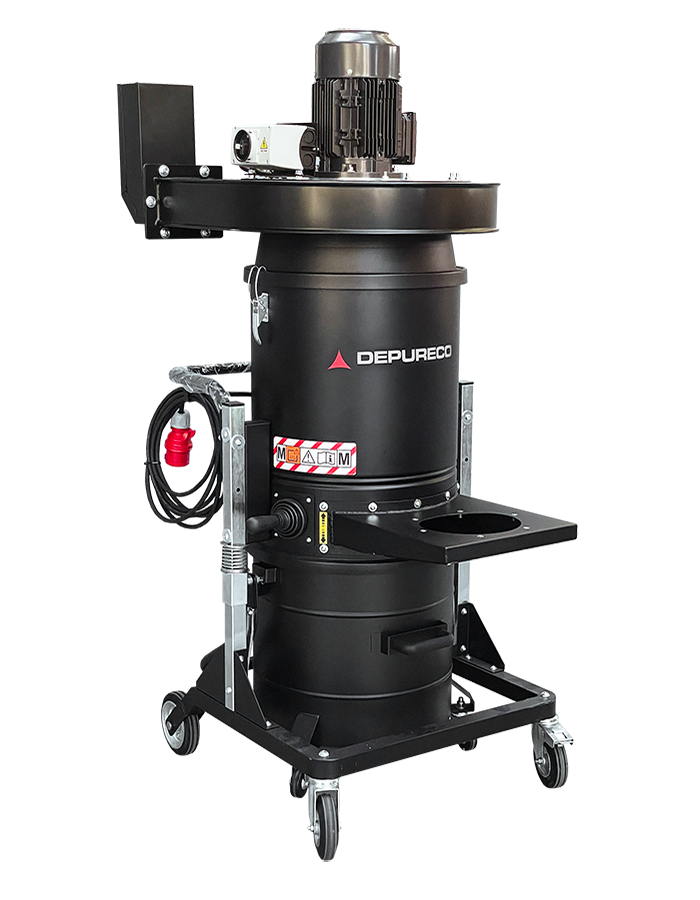

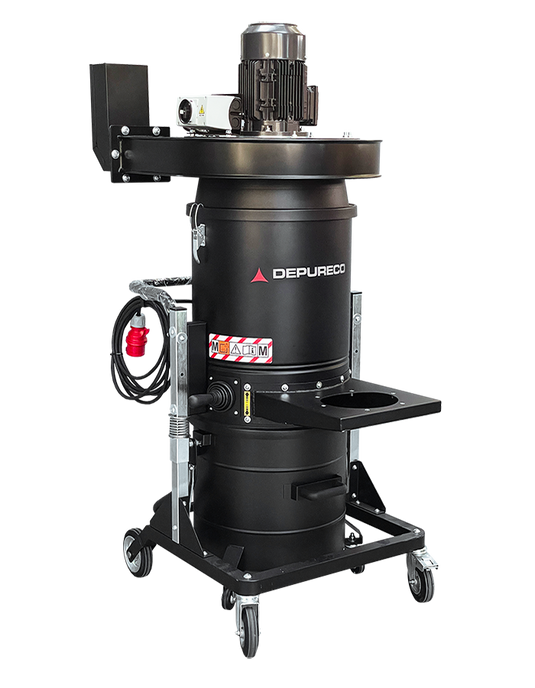

Depureco DF 22 Dust Collector Portable Industrial Vacuum


The DF 22 is a portable industrial vacuum with a three-phase fan for vacuuming suspended dust or it can be connected to a aluminum and/or PVC cutting machine. The DF 22 industrial vacuum from the Depureco dust collector product line is fitted with an excellent filtering surface with an M Class filtration efficiency (1 micron).

For this vacuum cleaner, a very effective manual filter cleaning system is fitted as standard. Thanks to a lever outside the filter chamber, the operator can shake the filter and make the dust drop directly into the bin. An automatic piston filter shaking system or jet pulse filter cleaning system can be installed on demand.

Power: 2.2kW

Surface: 24.000cm2

Capacity: 65/100 L



Suction type Fan
Voltage 400 V
IP 55
Maximum air flow 800 | 1000 | 1400 m3/h
Noise level – (EN ISO 3744) 73 dB(A)
Frequency 50/60 Hz
Power 3.0 HP
Insulation class F
Maximum vacuum 352 | 350 | 350 mm/H2O
Available static inlet pressure 340 | 320 | 280



Type Star Filter
Class EN 60335-2-69 M Class
Media Polyester
Filter cleaning Manual Shaker



Inlet 100 | 120 | 150 Ø mm
Dimensions 660 x 800 mm
Conic cyclone Included
