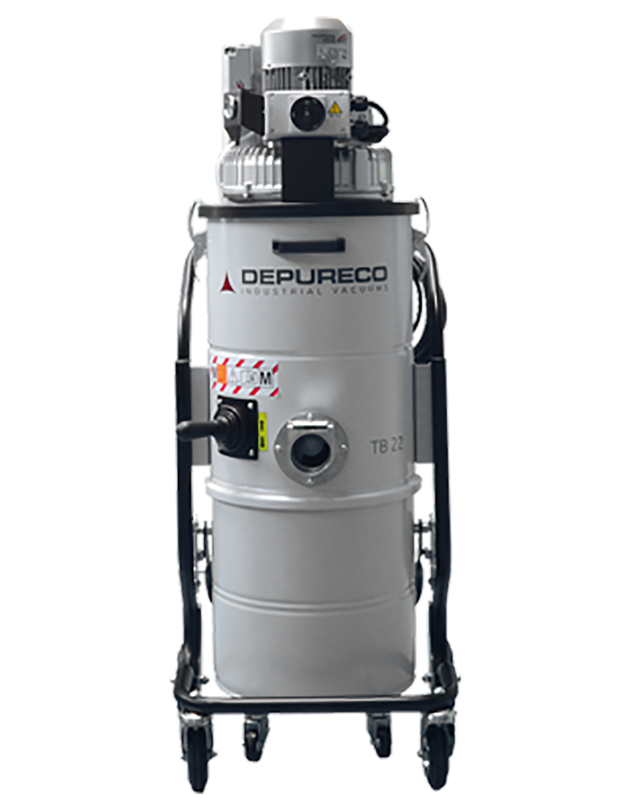

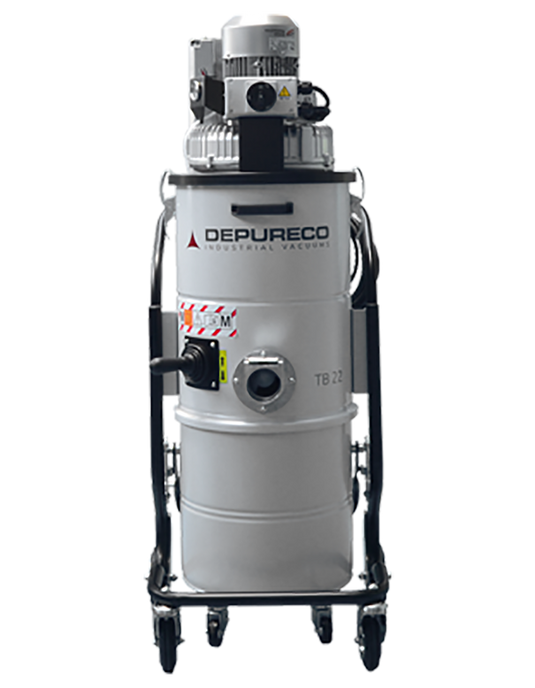

Depureco TB 22 Three-Phase Industrial Vacuum Cleaner

SKU: TB 22

The TB 22 model is an industrial vacuum fitted with a 230V side channel turbine (Made in Italy), ideal for working continuously without the need for maintenance. The filter chamber contains a large surface polyester filter, certified as M Class (1-micron filtration efficiency), ideal for working with even the finest dust. In this industrial vacuum of the Depureco three-phase range, a different filter can be installed depending on the professional application.

Teflon water-repellent filters, Nomex 250°C resistant filters, and filters with PTFE treatment for more binding and difficult dust are also available. The unit can be fitted with an H14 absolute filter on demand. The TB industrial vacuum is equipped with a large 45 lt detachable container that allows the operator to empty the vacuumed material easily. Disposable collection bags can also be used. A floating system can be provided in the container to vacuum liquids in complete safety.

Power: 2.2kW

Surface: 15.000cm2

Capacity: 45 L



Suction type Side Channel Blower
Voltage 400 V
IP 55
Maximum vacuum 2850 mBar
Vacuum in continuous run 220 mBar
Maximum air flow 280 m3/h
Safety valve Included
Noise level – (EN ISO 3744) 72 dB(A)
Frequency 50/60 Hz
Power 3.0 HP
Insulation class F



Type Star Filter
Class EN 60335-2-69 M Class
Media Polyester
Filter cleaning Manual Shaker



Inlet 70 Ø mm
Dimensions 550 x 620 mm
Height 1397
Weight 55 Kg
