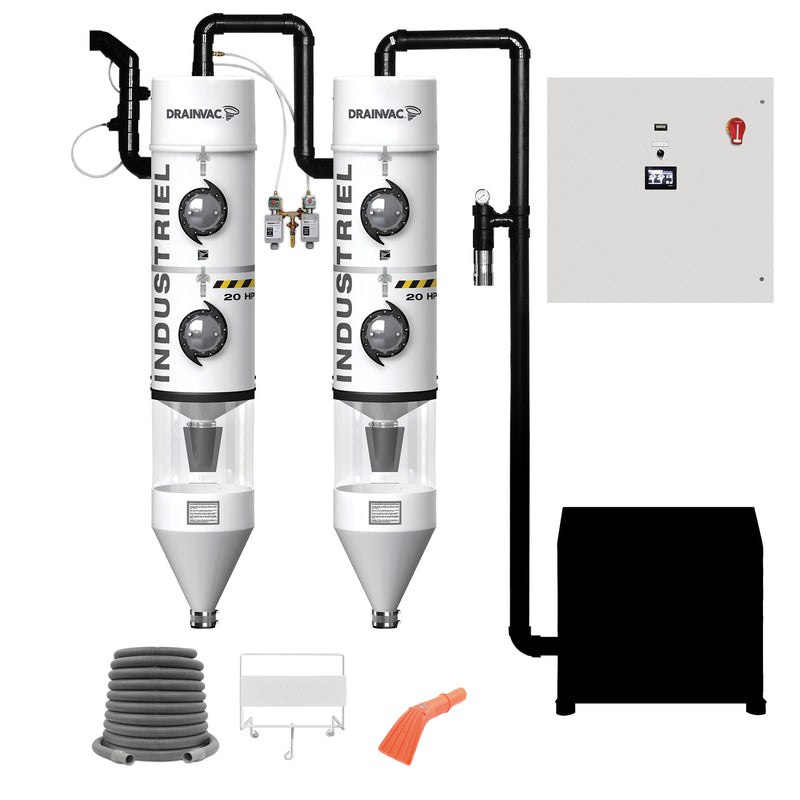

Includes 2 large capacity separators, twin water solenoid valve, water lift guage and a relief valve
Can be paired with 17 and 30 HP motors
Water inlet required
Lifetime warranty casing
Technical Data Values
IN: | 102 mm |
OUT: | 102 mm |
Capacity: | 54.5 L |
Weight: | 81.6 Kg |
REGEN17 HP Motor
- Stainless steel casing
- Double stage motor
- 76 mm air inlet, 76 mm air outlet
- Hour meterĀ
Technical Data
Frequency: | 50 Hz |
Power: | 12.5 Kw (17 HP) |
Voltage: | 350-450 610-725Y |
Amps: | 22A 12.7 A |
Max Airflow: | 530 CFM (900 m3h) |
Max Vacuum: | 112 H2O (-280 mbar) |
Weight: | 168 Kg |
Height: | 70.6 cm |
Width: | 73.6 cm |
Length: | 74.4 cm |
