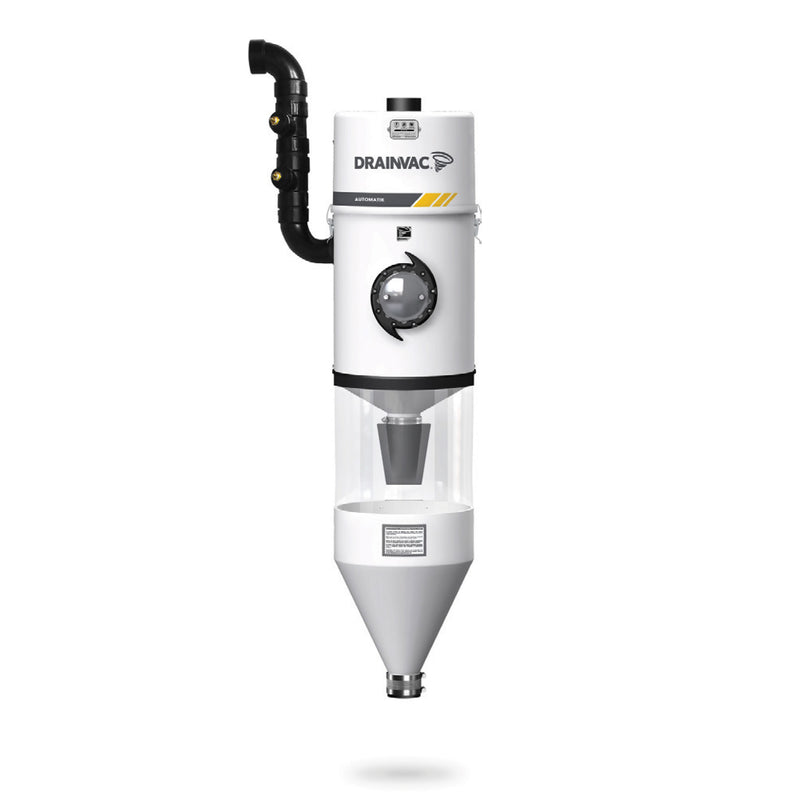

Can be paired with either 6 or 11 HP Motors
Water inlet required
Lifetime warranty casing
Technical Data Values
| IN: | 76 mm |
| OUT: | 76 mm |
| Capacity: | 29 L |
| Height: | 130 cm |
| Diameter: | 38 cm |
| Weight: | 25 Kg |
| Voltage: | 220-240V |
| Reset: | 6 A |

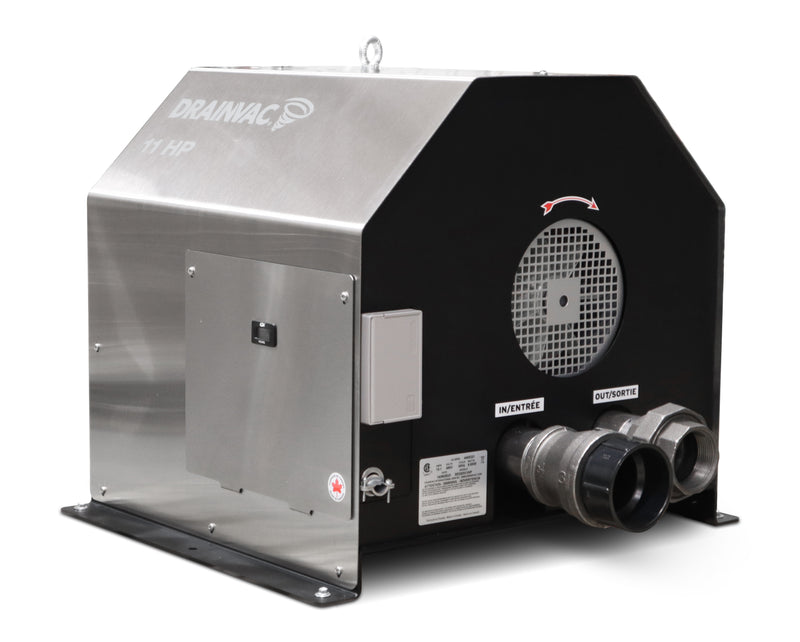

REGEN11HP Central Vacuum Motor
Regen-type motor that produces 11 HP of vacuum power. Can be used by 1 to 2 users simultaneously and can withstand long consecutive hours. The motor requires minimum maintenance and is covered by a stainless steel housing which includes an hour meter.
Features
- Stainless steel casing
- 3" (76 mm) air inlet and outlet
- 20,000 hours of usage before any maintenance is required
Technical Specifications
| Frequency: | 60 Hz/50 Hz |
| Power: | 8 kW (11 HP) |
| Voltage: | 690-725 400-500 |
| Amps: | 8.8 15.1 |
| CFM: | 365 (620 m3/h) |
| Vacuum: | 141 H2O (-350 mbar) |
| Size: | 57.4 cm x 68 cm x 57.4 cm |
Description
Can be paired with either 6 or 11 HP Motors
Water inlet required
Lifetime warranty casing
Technical Data Values
| IN: | 76 mm |
| OUT: | 76 mm |
| Capacity: | 29 L |
| Height: | 130 cm |
| Diameter: | 38 cm |
| Weight: | 25 Kg |
| Voltage: | 220-240V |
| Reset: | 6 A |
REGEN11HP Central Vacuum Motor
Regen-type motor that produces 11 HP of vacuum power. Can be used by 1 to 2 users simultaneously and can withstand long consecutive hours. The motor requires minimum maintenance and is covered by a stainless steel housing which includes an hour meter.
Features
- Stainless steel casing
- 3" (76 mm) air inlet and outlet
- 20,000 hours of usage before any maintenance is required
Technical Specifications
| Frequency: | 60 Hz/50 Hz |
| Power: | 8 kW (11 HP) |
| Voltage: | 690-725 400-500 |
| Amps: | 8.8 15.1 |
| CFM: | 365 (620 m3/h) |
| Vacuum: | 141 H2O (-350 mbar) |
| Size: | 57.4 cm x 68 cm x 57.4 cm |
